Acoustic tuning samples

Acoustic tuning samples

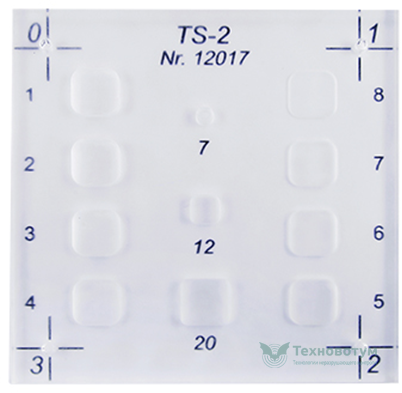

TS-2

Reference measure for impedance testing

It is designed to simulate defects such as non-adhesive, delamination, and so on to set up DAMI-С09 composite materials flaw detector: material - organic glass; total thickness (mm) -8; depth of defects (mm) - 1.6; defect Area (mm²) 49/144/400; defect configuration-flat-Bottom drilling; recommended transducers - PADI-8-02, UDP-10-02E
