Eddy current tuning samples

Eddy current tuning samples

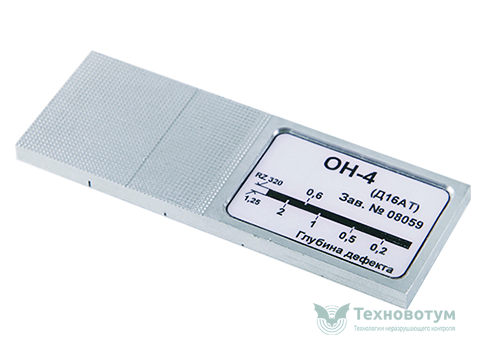

ON-4

Eddy current reference standard for non-ferromagnetic alloys

Reference standards of ON series are used for setup (check) the sensitivity threshold of eddy current flaw detectors and eddy current transducers when working with materials similar to the steel grade of the reference standard. This reference standard ON-4 for non-ferromagnetic alloys has artificial defects on its surface (reference cuts), which parameters are shown in the technical passport. Comparison of the reference values of the standard with the parameters of the device gives an idea of accuracy of device settings for eddy current testingof materials made of non-ferromagnetic alloys.

Eddy current tuning samples

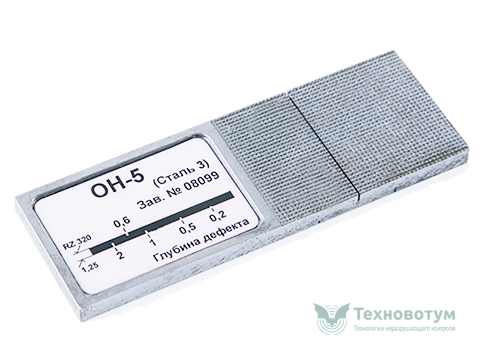

ON-5

Eddy current reference standard for ferromagnetic alloys

Reference standards of ON series are used for setup (check) the sensitivity threshold of eddy current flaw detectors and eddy current transducers when working with materials similar to the steel grade of the reference standard. This reference standard ON-5 for ferromagnetic alloys has artificial defects on its surface (reference cuts), which parameters are shown in the technical passport. Comparison of the reference values of the standard with the parameters of the device gives an idea of accuracy of device settings for eddy current testing of materials made of ferromagnetic alloys.

Eddy current tuning samples

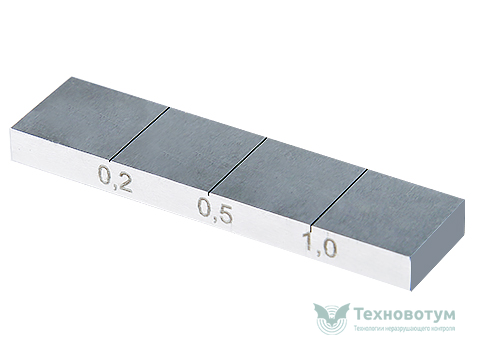

RSА-0,2-0,5-1

Eddy current reference standard

Reference standards RSА-0,2-0,5-1 made of aluminum alloy is used in typical eddy current testing techniques in aviation industry. Included in the basic delivery set with the DAMI-С09 flaw detector.

Reference standards of RS series are used forsetup (check) the sensitivity threshold of eddy current flaw detectors and eddy current transducers when working with materials similar to the alloy grade of the reference standard. This reference standard RSА-0,2-0,5-1made of aluminum alloyhas artificial defects on its surface (reference cuts), which parameters are shown in the technical passport. Comparison of the reference values of the standard with the parameters of the device gives an idea of accuracy of device settings for eddy current testing of materials made of aluminum alloys.

Eddy current tuning samples

RSS-0,2-0,5-1

Eddy current reference standard

Reference standards RSS-0,2-0,5-1

made of carbon steel is used in typical eddy current testing techniques in aviation industry. Included in the basic delivery set with DAMI-С09 flaw detector.

Reference standards of RS series are used for setup (check) the sensitivity threshold of eddy current flaw detectors and eddy current transducers when working with materials similar to the steel grade of the reference standard. This reference standard RSS-0,2-0,5-1

made of carbon steel has artificial defects on its surface (reference cuts), which parameters are shown in the technical passport. Comparison of the reference values of the standard with the parameters of the device gives an idea of accuracy of device settings for eddy current testing of materials made of steel.

Eddy current tuning samples

RS-SS-0,2-0,5-1

Eddy current reference standard

Reference standards RS-SS-0,2-0,5-1 made of carbon steel is used in typical eddy current testing techniques in aviation industry. Included in the basic delivery set with DAMI-С09 flaw detector.

Reference standards of RS series are used for setup (check) the sensitivity threshold of eddy current flaw detectors and eddy current transducers when working with materials similar to the steel grade of the reference standard. This reference standard RS-SS-0,2-0,5-1 made of carbon steel has artificial defects on its surface (reference cuts), which parameters are shown in the technical passport. Comparison of the reference values of the standard with the parameters of the device gives an idea of accuracy of device settings for eddy current testing of materials made of steel.

Eddy current tuning samples

RST-0,2-0,5-1

Eddy current reference standard

Reference standards RST-0,2-0,5-1 made of carbon steel is used in typical eddy current testing techniques in aviation industry. Included in the basic delivery set with DAMI-С09 flaw detector.

Reference standards of RS series are used for setup (check) the sensitivity threshold of eddy current flaw detectors and eddy current transducers when working with materials similar to the steel grade of the reference standard. This reference standard RST-0,2-0,5-1 made of carbon steel has artificial defects on its surface (reference cuts), which parameters are shown in the technical passport. Comparison of the reference values of the standard with the parameters of the device gives an idea of accuracy of device settings for eddy current testing of materials made of steel.
