Specialized railroad cars transducers

Специализированные ЖД transducers

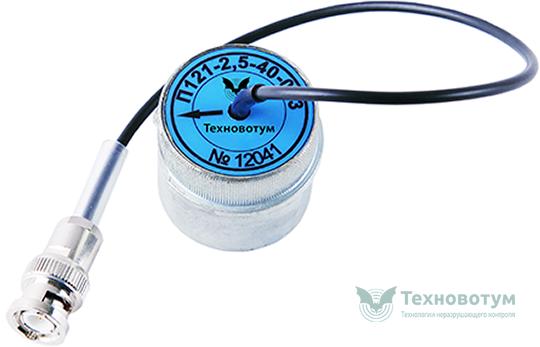

P121-1,25-90-USK; P121-2,5-40-USK; P121-2,5-50-USK; P111-2,5-К12-005; P112-2,5-12/2-005

Operating frequency: 1,25 - 2,5 MHz; input angle of beam: 40-90°; dimensions: Ø37,4; height: 32,6 mm

Piezoelectric transducers are used as part of scanning devices USK4-TM, USK5-TM for ultrasonic testing of all-rolled wheels (rim, flange, pre-rim zone) of wheel sets of freight and passenger cars.


Специализированные ЖД transducers

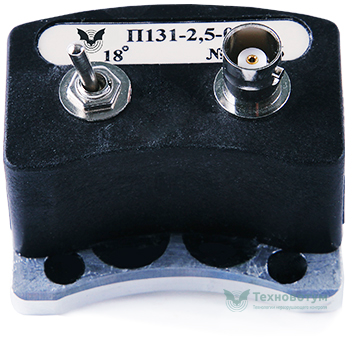

P131-2,5-0/18; P131-2,5-0/20; P131-2,5-0/27

Operating frequency: 2,5 MHz; input beam angle: 0°/18°(20°); dimensions 60х60х50 mm

Combined piezoelectric transducers are used for ultrasonic inspection of wheel axles of freight and passenger cars. The testing is performed from a threaded groove (end face) of the axle. Switching between input angles 0°/18°(20°) - using a toggle switch.

Test zones (variants of the method):

  • "axlesoundability" (TR1);
  • middle and far wheel seatof axle, except for the area under the hub outer edge (AR1.1);
  • journal and pre-seat part of axle (AR1.2, AR1.4);
  • seat of axle in the area under the hub outer edge (AR1.3).


Специализированные ЖД transducers

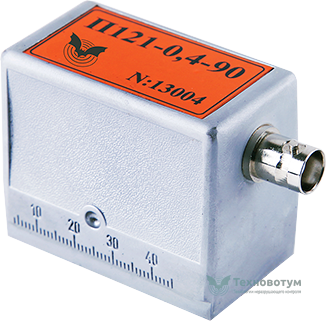

P121-0,4-90; P121-1,25-90-003

Operating frequency: 0.4 MHz; input angle: 90°; dimensions: 55x32x44 mm

A piezoelectric transducer is used for ultrasonic testing of thread and subsurface area of all-rolled wage and freight wheelrims.


Специализированные ЖД transducers

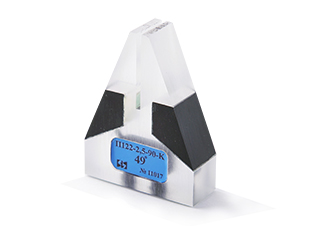

P122-2,5-90-C; P122-2,5-90-W

Operating frequency: 2,5 MHz; input angle: 90°; dimensions: 50х65х20 mm

Specialized piezoelectric transducers are used for ultrasonic testing of teeth of wheels and gears of locomotives and motor driven rolling stock wheel sets.


Специализированные ЖД transducers

P121-2,5-19-USO; P121- 2,5-43-USO; P121-2,5-55-USO; P121-5-65-USO

Operating frequency: operating frequency: 2.5-5 MHz; input angle: 43-65°; dimensions: Ø22, height: 20mm.

Specialized piezoelectric transducers are used in conjunction with scanning devices for railway purposes USO-1T, USO1-TM for ultrasonic inspection of the wage and freight wheelset axles.


Специализированные ЖД transducers

P121-2,5-45-M3; P121-2,5- 50-M3; P121-2,5-65-M3; P121- 2,5- 70-M3; P112- 2,5-12/2- M3

Operating frequency: 2.5 MHz; input angle: 45-70°; dimensions: 45x17x90 mm

Specialized piezoelectric transducers are used in conjunction with the railway scanning device SLIDER M3 for ultrasonic inspection of railweld joints.
